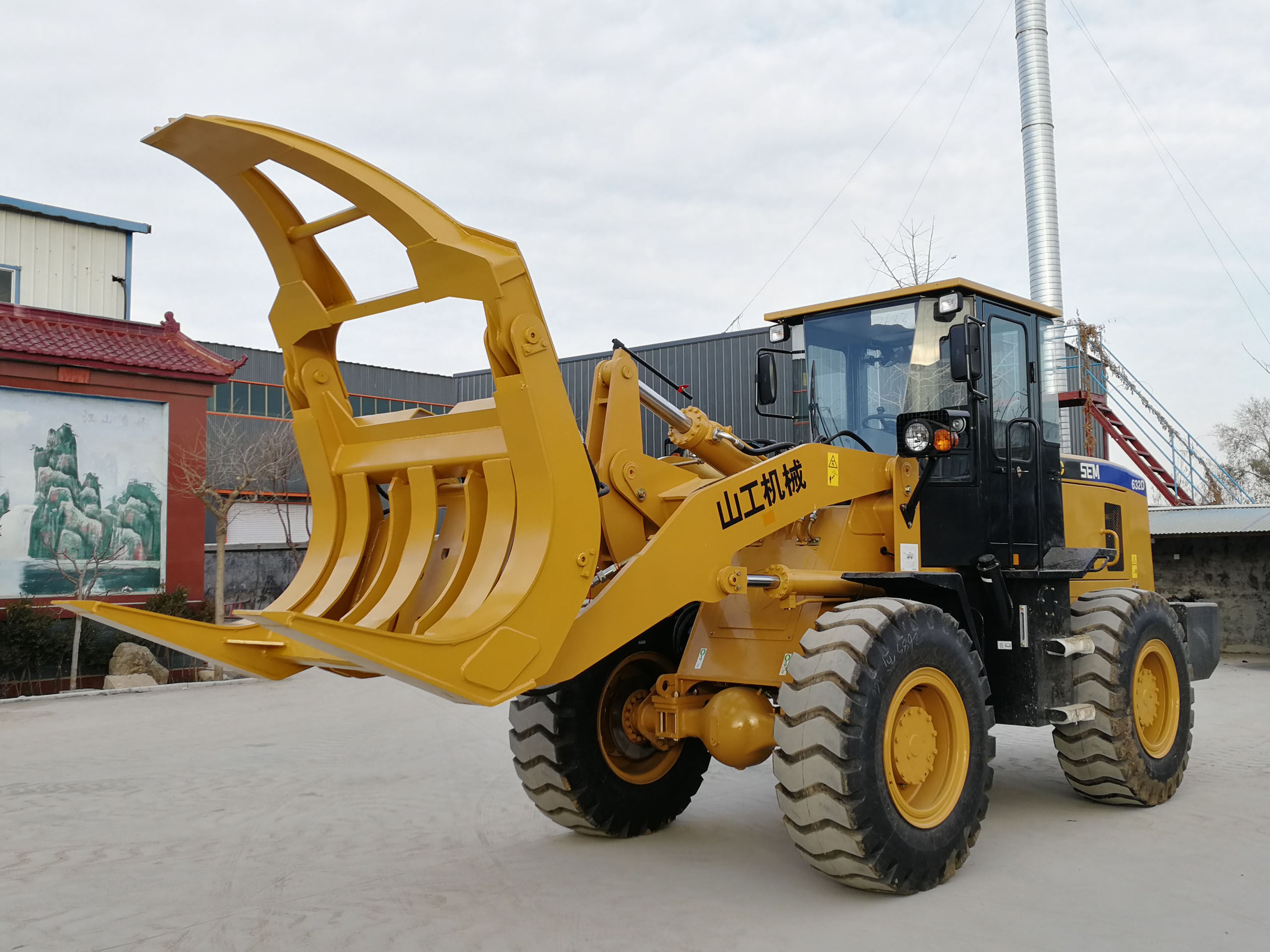

Forestry Log Grapple Loader SEM636D-LG

SPECIFICATION

Forestry Log Grapple Loader	SEM636D-LG
Attachment	Forestry Log Grapple
Rated load for log handling	2500 kg
Machine Operating weight with Forestry Log Grapple	10633 kg
Wheel base	2740 mm
Overall dimension	7422 * 2354 * 3182 mm
Max. Dumping height	2989 mm
Gearbox & Gear shift	Countershaft Powershift F4R2
Engine Model	WEICHAI WP6G125E22
Rated Power	92 kW @ 2200 r/min

General Configuration

Forestry Log Grapple Loader SEM636D-LG features outstanding performance and reliable quality.

Applications

Forestry Log Grapple Loader SEM636D-LG are widely used in sawmills for log handling.

CATERPILLAR QINGZHOU Brands

SEM636D is manufactured by CATERPILLAR QINGZHOU factory. Developing Forestry Log Grapple in cooperation with CATERPILLAR QINGZHOU, we can provide better performance, cost-effectiveness, and durability.

Contact us to get a quotation suggestion.
